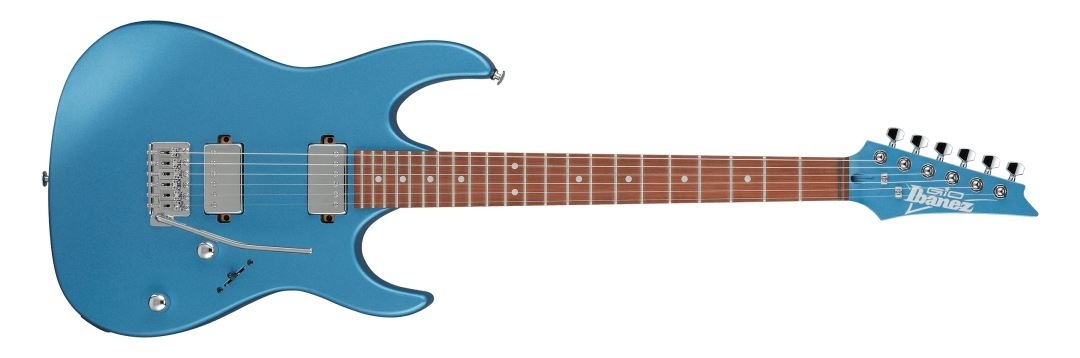

Ibanez GRX120SPMLM

neck type GRXMaple neck

top/back/body Poplar body

fretboard Jatoba fretboardWhite dot inlay

fret Medium frets

number of frets 22

bridge T106 bridge

string space 10.5mm

neck pickup Infinity R (H) neck pickupPassive/Ceramic

bridge pickup Infinity R (H) bridge pickupPassive/Ceramic

factory tuning 1E,2B,3G,4D,5A,6E

string gauge .009/.011/.016/.024/.032/.042

hardware color Chrome

Scale : 648mm/25.5"

a : Width 42mm at NUT

b : Width 57mm at 22F

c : Thickness 19.5mm at 1F

d : Thickness 21.5mm at 12F

Radius : 305mmR

Guitar Neck Diagram

a: Width of the neck at the nut

b: Width of the neck at the first fret

c： Thickness of the neck at the first fret

d: Thickness of the neck at the twelfth fret

Radius: Radius of the fingerboard

Maple neck

The Maple neck provides stability and bright tonal character.

Infinity R H-H pickups

Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

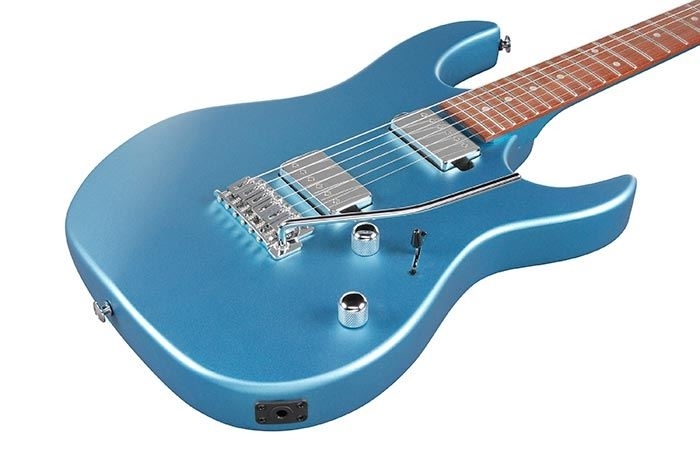

T106 tremolo bridge

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
